Ishiguro White Perforated Flange SOP-FF Type SS400 Equivalent 10K Nominal Size (A) 20 G10SOP-F-20A 1 pc

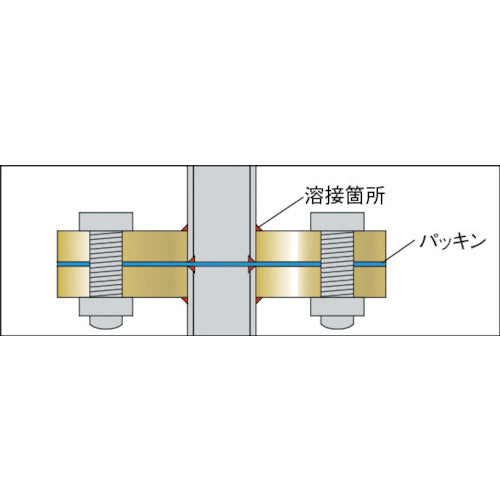

Catalog number: G10SOP-F-20A Features: ● JIS standard equivalent product. ● Wrapping the pipe and fillet welding, alignment is extremely easy. Applications: ● For piping under gentle conditions. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● Inner diameter (mm): 27.7 ● Outer diameter (mm): 100 ● Thickness (mm): 14 ● Number of bolt holes (pcs): 4 ● Bolt hole diameter (mm): 15 ● Operating pressure (K): 10 ● Type: Slip-on ● JIS B2220 standard product ● Operating pressure: 10K Material/Finish: ● Steel (SS400 equivalent, zinc-plated finish)
