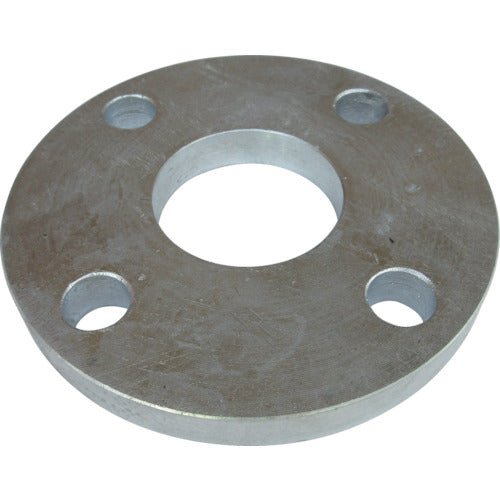

Ishiguro White Perforated Flange SOP-FF Type SS400 Equivalent 10K Nominal Size (A) 250 G10SOP-F-25A 1 pc

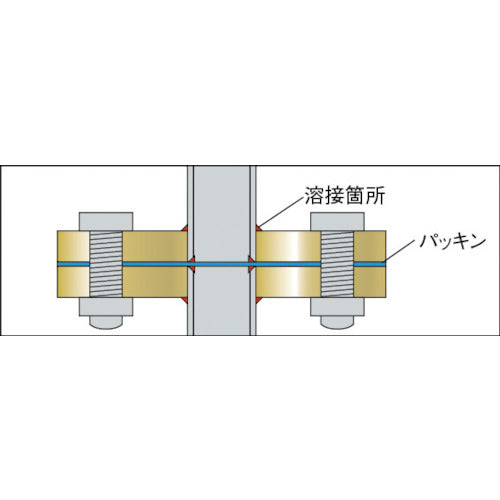

Catalog number: G10SOP-F-25A Features: ●JIS standard equivalent product. ●Wrapping the pipe for fillet welding and alignment is extremely easy. Applications: ●For piping under gentle conditions. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●Inner diameter (mm): 34.5 ●Outer diameter (mm): 125 ●Thickness (mm): 14 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 19 ●Operating pressure (K): 10 ●Type: Slip-on ●JIS B2220 standard product ●Operating pressure: 10K Material/Finish: ●Steel (SS400 equivalent, zinc-plated finish)
