Ishiguro White Perforated Flange SOP-FF Type SS400 Equivalent 5K Nominal Diameter (A) 15 G5SOP-F-15A 1 pc

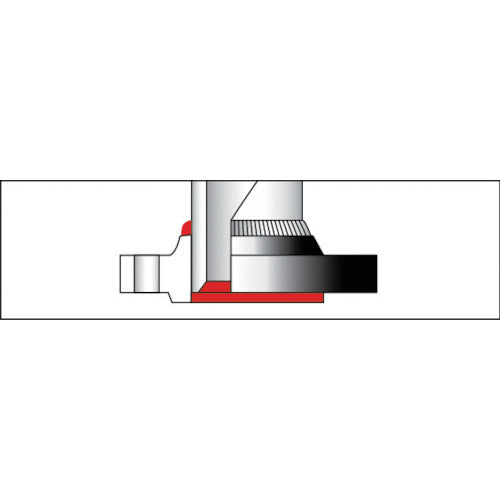

Catalog number: G5SOP-F-15A Features: ●JIS standard equivalent product. ●Wrapping the pipe for fillet welding and alignment is extremely easy. Applications: ●For piping under gentle conditions. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●Inner diameter (mm): 22.2 ●Outer diameter (mm): 80 ●Thickness (mm): 9 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 12 ●Operating pressure (K): 5 ●Type: Slip-on ●JIS B2220 standard product ●Operating pressure: 5K Material/Finish: ●Steel (SS400 equivalent, zinc-plated finish)
