Ishiguro White Perforated Flange SOP-FF Type SS400 Equivalent 5K Nominal Size (A) 200 G5SOP-F-20A 1 pc

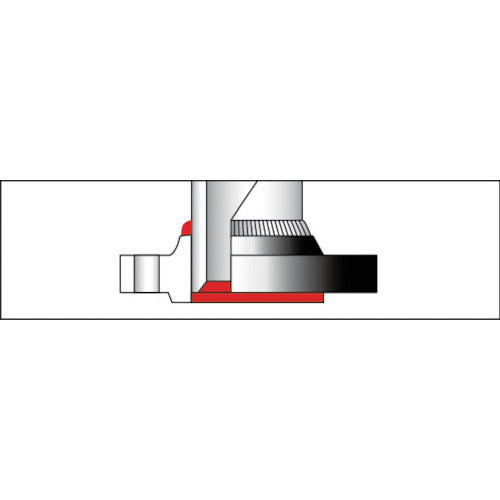

Catalog number: G5SOP-F-20A Features: ●JIS standard equivalent product. ●Wrapping the pipe for fillet welding and alignment is extremely easy. Applications: ●For piping under gentle conditions. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Inner diameter (mm): 27.7 ●Outer diameter (mm): 85 ●Thickness (mm): 10 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 12 ●Operating pressure (K): 5 ●Type: Slip-on ●JIS B2220 standard product ●Operating pressure: 5K Material/Finish: ●Steel (SS400 equivalent, zinc-plated finish)
