Ishiguro White Perforated Flange SOP-FF Type SS400 Equivalent 5K Nominal Size (A) 80 G5SOP-F-80A 1 pc

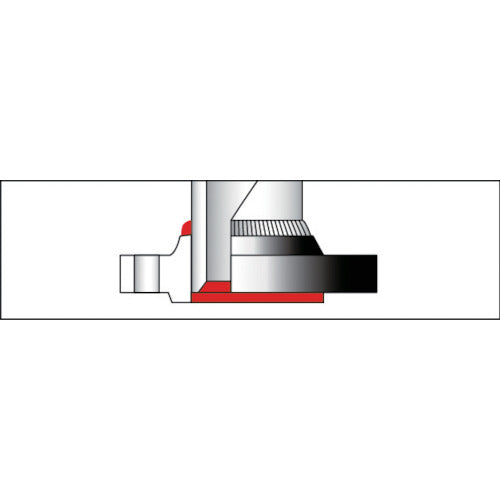

Catalog number: G5SOP-F-80A Features: ● JIS standard equivalent product. ● Wrapping the pipe and fillet welding, alignment is extremely easy. Applications: ● For piping under gentle conditions. Specifications: ● Nominal diameter A: 80 ● Nominal diameter B: 3 ● Inner diameter (mm): 90.0 ● Outer diameter (mm): 180 ● Thickness (mm): 14 ● Number of bolt holes (pcs): 4 ● Bolt hole diameter (mm): 19 ● Operating pressure (K): 5 ● Type: Slip-on ● JIS B2220 standard product ● Operating pressure: 5K Material/Finish: ● Steel (SS400 equivalent, zinc-plated finish)
