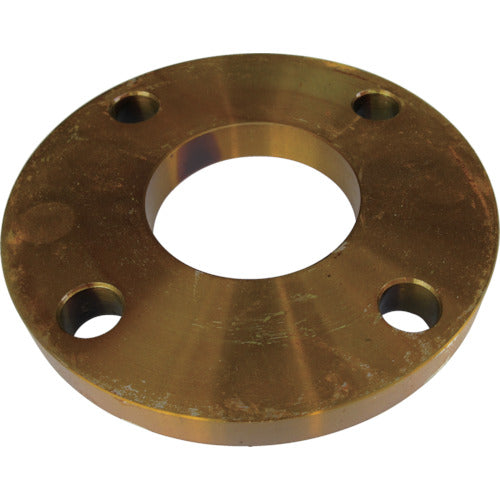

Ishiguro Black Perforated Flange SOP-FF Type SS400 Equivalent 10K Nominal Size (A) 32 10SOP-F-32A 1 pc

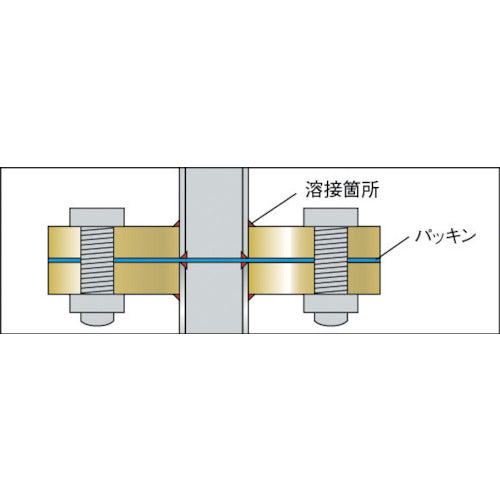

Catalog number: 10SOP-F-32A Features: ●JIS standard equivalent product. ●It is extremely easy to wrap the pipe and perform fillet welding and alignment. Applications: ●For piping under gentle conditions. Specifications: ●Nominal diameter A: 32 ●Nominal diameter B: 1 1/4 ●Inner diameter (mm): 43.2 ●Outer diameter (mm): 135 ●Thickness (mm): 16 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 19 ●Operating pressure (K): 10 ●Type: Slip-on ●JIS B2220 standard product ●Operating pressure: 10K Material/Finish: ●Steel (equivalent to SS400) Caution: ●Although it is coated with rust-preventive varnish (yellow), rust may occur.
