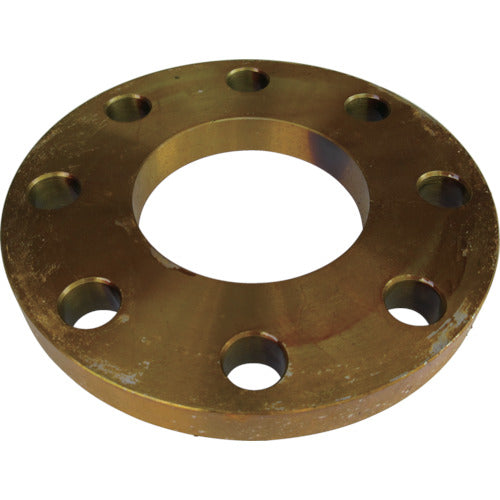

Ishiguro Black Perforated Flange SOP-FF Type SS400 Equivalent 10K Nominal Size (A) 80 10SOP-F-80A 1 pc

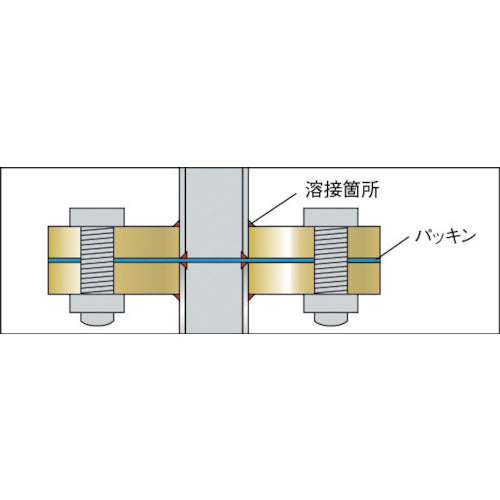

Catalog number: 10SOP-F-80A Features: ●JIS standard equivalent product. ●The pipe is wrapped around the pipe for fillet welding and alignment is extremely easy. Applications: ●For piping under gentle conditions. Specifications: ●Nominal diameter A: 80 ●Nominal diameter B: 3 ●Inner diameter (mm): 90.0 ●Outer diameter (mm): 185 ●Thickness (mm): 18 ●Number of bolt holes (pcs): 8 ●Bolt hole diameter (mm): 19 ●Operating pressure (K): 10 ●Type: Slip-on ●JIS B2220 standard product ●Operating pressure: 10K Material/Finish: ●Steel (equivalent to SS400) Caution: ●Anti-rust varnish (yellow) is applied, but rust may occur.
