Ishiguro Black Perforated Flange SOP-FF Type SS400 Equivalent 5K Nominal Diameter (A) 65 5SOP-F65A 1 pc

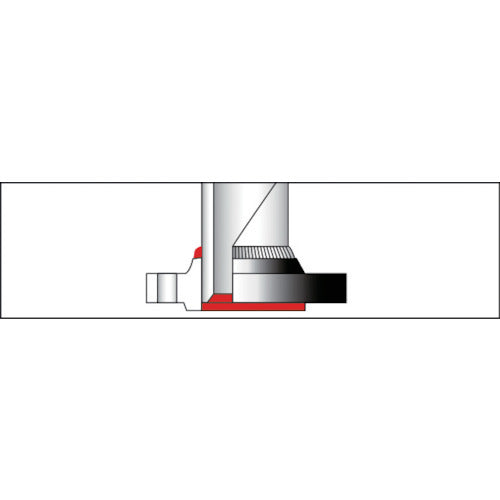

Catalog number: 5SOP-F65A Features: ●JIS standard equivalent product. ●By wrapping the pipe, fillet welding, and alignment are extremely easy. Applications: ●For piping under gentle conditions. Specifications: ●Nominal diameter A: 65 ●Nominal diameter B: 2 1/2 ●Inner diameter (mm): 77.1 ●Outer diameter (mm): 155 ●Thickness (mm): 14 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 15 ●Operating pressure (K): 5 ●Type: Slip-on ●JIS B2220 standard product ●Operating pressure: 5K Material/Finish: ●Steel (equivalent to SS400) Caution: ●Although a rust-preventive varnish (yellow) is applied, rust may occur.
