Ishiguro Black Blind Flange BL-FF Type SS400 Equivalent 10K Nominal Size (A) 32 10BL-F32A 1 pc

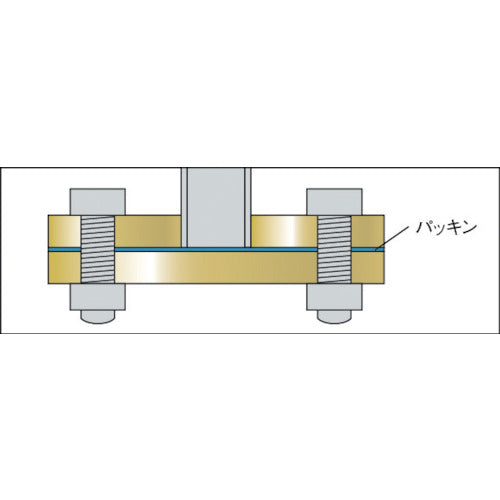

Catalog number: 10BL-F32A Features: ● JIS standard equivalent product. ● Generally used to stop fluids in piping. Applications: ● To stop fluids in piping. Specifications: ● Nominal diameter A: 32 ● Nominal diameter B: 1 1/4 ● Outside diameter (mm): 135 ● Thickness (mm): 16 ● Number of bolt holes (pcs): 4 ● Bolt hole diameter (mm): 19 ● Operating pressure (K): 10 ● Type: Blind Material/Finish: ● Steel (equivalent to SS400) Caution: ● Although an anti-rust varnish (yellow) is applied, rust may occur.
