Ishiguro Black Blind Flange BL-FF Type SS400 Equivalent 10K Nominal Size (A) 40 10BL-F40A 1 pc

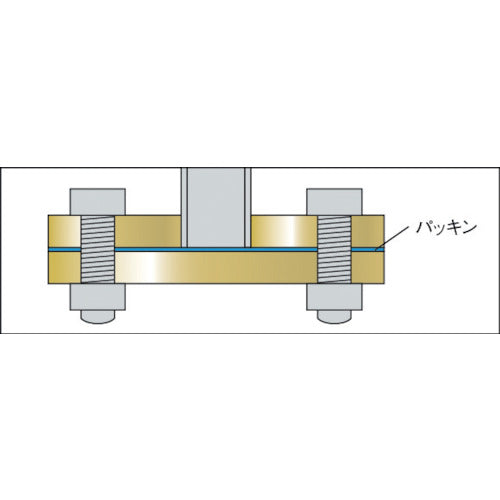

Catalog number: 10BL-F40A Features: ● JIS standard equivalent product. ● Generally used to stop fluids in piping. Applications: ● To stop fluids in piping. Specifications: ● Nominal diameter A: 40 ● Nominal diameter B: 1 1/2 ● Outside diameter (mm): 140 ● Thickness (mm): 16 ● Number of bolt holes (pcs): 4 ● Bolt hole diameter (mm): 19 ● Operating pressure (K): 10 ● Type: Blind Material/Finish: ● Steel (equivalent to SS400) Caution: ● Although it is coated with rust-preventive varnish (yellow), rust may occur.
