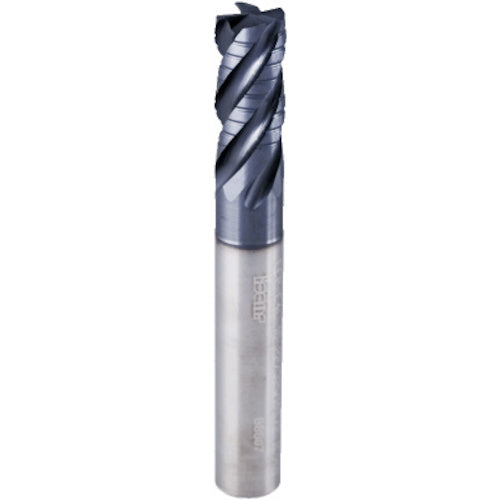

Iscar Solid Carbide End Mill ECR-B4-M Blade Diameter 10 mm Blade Length 20 mm Shank Diameter 10 mm IC900 ECR-B4M 10-20C10-72 1 piece

Catalogue number: ECR-B4M 10-20C10-72 Features: ●The high rake and strong twist cutting edge provides long tool life and high machining efficiency, especially when machining stainless steel and hard-to-cut materials. Applications: ●Workpiece: Stainless steel, hard-to-cut materials. ●For rough machining in milling. Specifications: ●Blade diameter (mm): 10 ●Blade length (mm): 20 ●Total length (mm): 72 ●Shank diameter (mm): 10 ●Number of teeth (pieces): 4 ●Surface treatment: TiAlN coating ●Number of teeth: 4 ●Bevel: C0.35 ●φd (mm): 10 ●φD (mm): 10 ●L (mm): 72 ●ap20 ●Twist angle 45° ●Cutting chips are finely divided, enabling high efficiency rough machining. Material/Finish: ●Carbide
