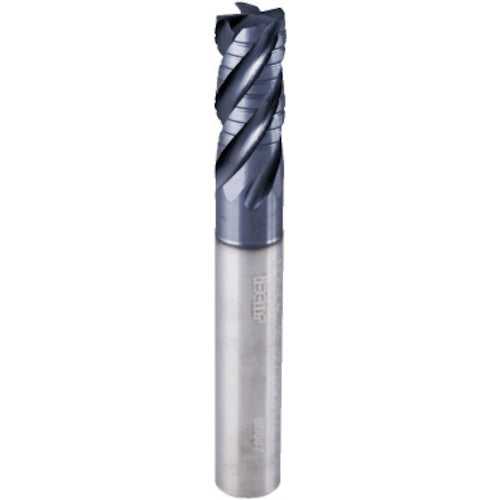

Iscar Solid Carbide End Mill ECR-B4-M Blade Diameter 8 mm Blade Length 16 mm Shank Diameter 8 mm IC900 ECR-B4M 08-16C08-63 1 piece

Catalogue number: ECR-B4M 08-16C08-63 Features: ●The high rake and strong twist cutting edge provides long tool life and high machining efficiency, especially when machining stainless steel and hard-to-cut materials. Applications: ●Workpiece: Stainless steel, hard-to-cut materials. ●For rough machining in milling. Specifications: ●Blade diameter (mm): 8 ●Blade length (mm): 16 ●Total length (mm): 63 ●Shank diameter (mm): 8 ●Number of blades (pieces): 4 ●Surface treatment: TiAlN coating ●Number of blades: 4 ●Bevel: C0.30 ●φd (mm): 6 ●φD (mm): 08 ●L (mm): 63 ●ap16 ●Twist angle 45° ●Cutting chips are finely divided, enabling high efficiency rough machining. Material/Finish: ●Carbide
