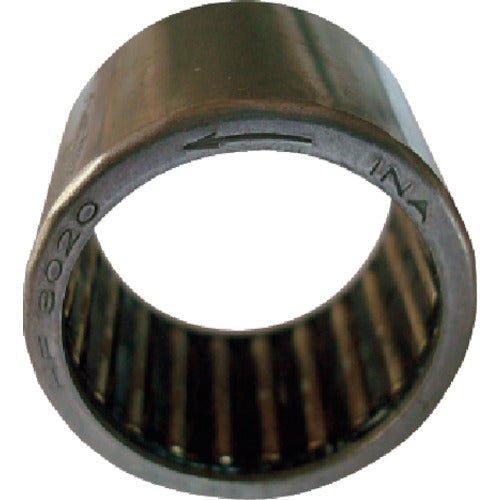

Ina One-way clutch, inner diameter 30 x width 20 mm, HF-3020, 1 piece

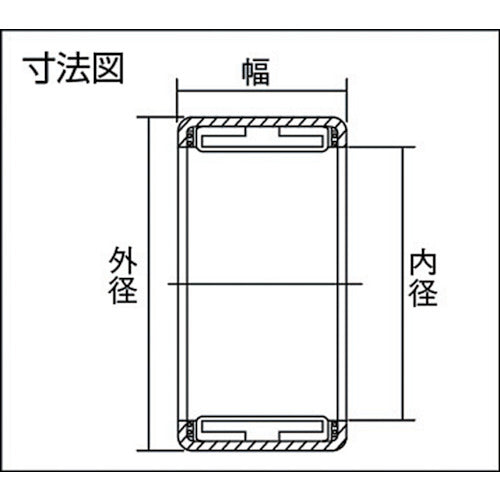

Catalogue number: HF-3020 Features: ●Thin wall allows for large torque transmission. ●Low backlash. ●DIN standard product (German Industrial Standard). ●Grooves are provided on the raceway surface of the press-formed thin-walled outer ring to hold the rollers. Applications: ●Indexing, intermittent motion, overrunning clutches, etc. ●For steel, cast iron, and light alloy housings. Specifications: ●Inner diameter (mm): 30 ●Outer diameter (mm): 37 ●Width (mm): 20 ●Operating temperature range: -10 to 70°C Materials/Finish: ●Body: Steel ●Spring: Steel
