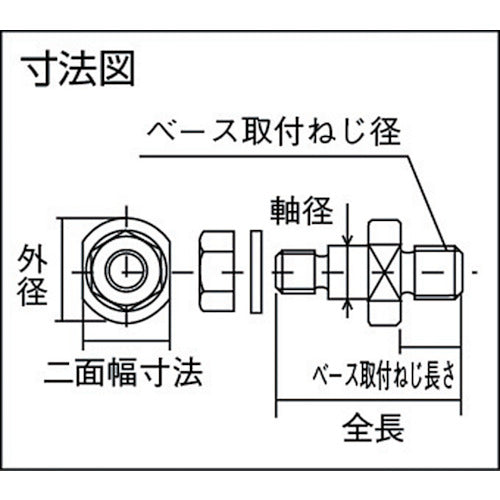

Catalog number: PID0807 Features: ● Used in combination with a drive tensioner. Applications: ● Used to connect an idler to a tightener, etc. Specifications: ● Overall length (mm): 33.5 ● Base mounting screw length (mm): 12.0 ● Shaft diameter (mm): 8 ● Outside diameter (mm): 16 ● Two-sided width dimension (mm): 13 ● Base mounting screw diameter: M10 x 1.5 Material/Finish: ● Steel
