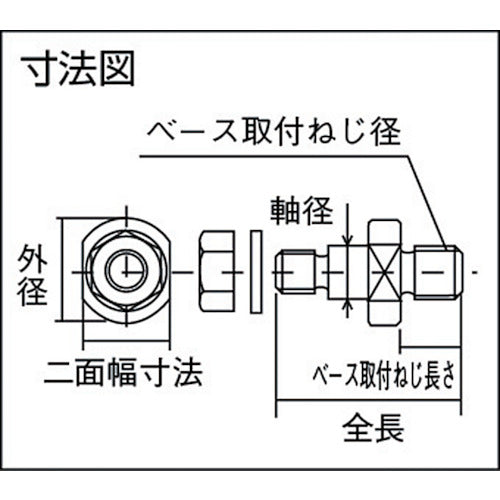

Catalog number: PID1210 Features: ● Used in combination with a drive tensioner. Applications: ● Used to connect an idler to a tightener, etc. Specifications: ● Overall length (mm): 62.0 ● Base mounting screw length (mm): 22.5 ● Shaft diameter (mm): 12 ● Outside diameter (mm): 23 ● Two-sided width dimension (mm): 19 ● Base mounting screw diameter: M16 x 2.0 Material/Finish: ● Steel
