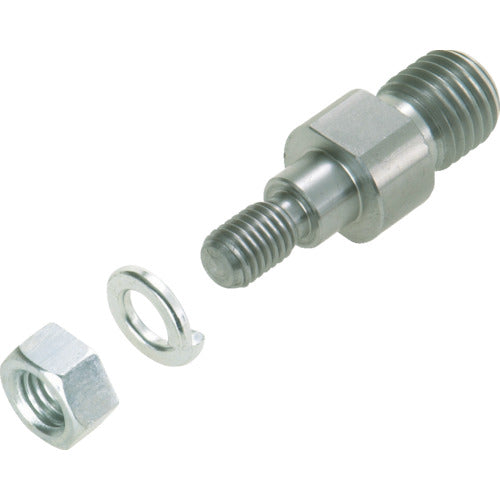

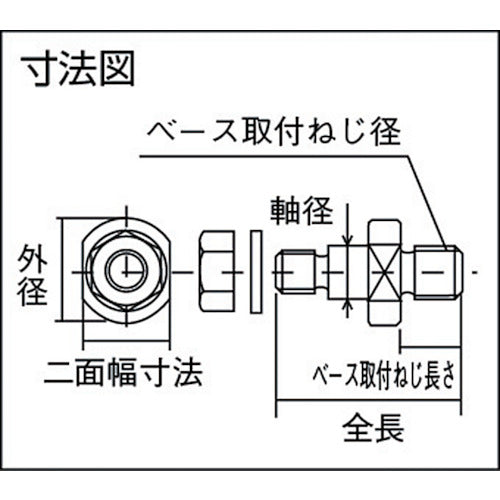

Catalog number: PID2014 Features: ● Used in combination with a drive tensioner. Applications: ● Used to connect an idler to a tightener, etc. Specifications: ● Overall length (mm): 73.0 ● Base mounting screw length (mm): 22.5 ● Shaft diameter (mm): 20 ● Outside diameter (mm): 32 ● Two-sided width dimension (mm): 27 ● Base mounting screw diameter: M20 x 2.5 Material/Finish: ● Steel
