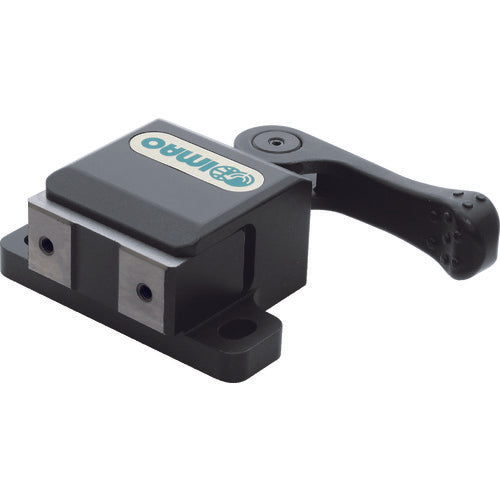

IMAO Cam Side Clamp QLSCH32 1 piece

Catalogue number: QLSCH32 Features: ●Clamping force can be adjusted by the lever load. ●The tip of the jaws is polished, so it is possible to clamp the finished surface of the workpiece. ●When clamping, a downward force is applied to the jaws to prevent the workpiece from floating up. Specifications: ●Height (mm): 32 ●Clamping force (N): 2000 ●Stroke (mm): 1.6 ●Mounting screw (mm): M6 ●Lever load (N): 150 Material/Finish: ●Body: Steel (S45C) Black oxide coating ●Jaws, shaft: Steel (S45C) Hardened and tempered Black oxide coating Polished finish ●Cam lever, lever: Steel (SCM440) Hardened and tempered Black oxide coating
