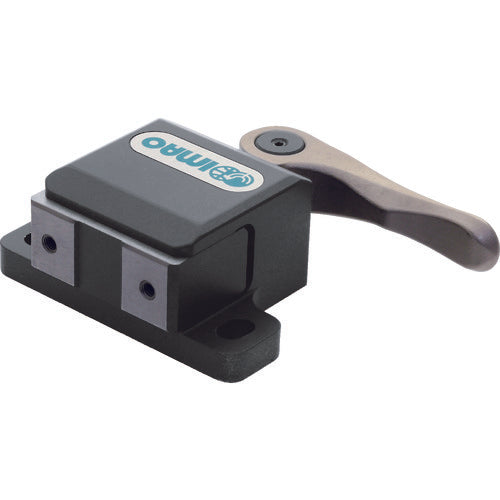

IMAO Cam Side Clamp QLSCH32L 1 pc

Catalogue number: QLSCH32L Features: ●The tip of the jaws is polished, so it is possible to clamp the finished surface of the workpiece. ●When clamping, the jaws apply a downward force to prevent the workpiece from floating up. ●The built-in spring keeps the clamping force constant. Specifications: ●Height (mm): 32 ●Clamping force (N): 600 ●Stroke (mm): 0.3 ●Mounting screw (mm): M6 ●Lever load (N): 40 ●Fast-forward stroke (mm): 0.8 Material/Finish: ●Body: Steel (S45C) Black oxide coating ●Jaws, shaft: Steel (S45C) Hardened and tempered Black oxide coating Polished finish ●Cam lever, lever: Steel (SCM440) Hardened and tempered Electroless nickel plating
