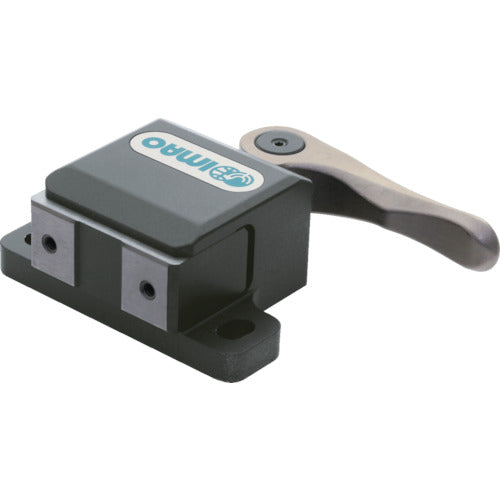

IMAO Cam Side Clamp QLSCH40L 1 pc

Catalogue number: QLSCH40L Features: ●The tip of the jaw is polished, so it is possible to clamp the finished surface of the workpiece. ●When clamping, the jaw exerts a downward force to prevent the workpiece from floating up. ●The built-in spring keeps the clamping force constant. Specifications: ●Height (mm): 40 ●Clamping force (N): 1200 ●Stroke (mm): 0.4 ●Mounting screw (mm): M8 ●Lever load (N): 50 ●Fast forward stroke (mm): 0.8 Material/Finish: ●Body: Steel (S45C) Black oxide coating ●Jaws, shaft: Steel (S45C) Hardened and tempered Black oxide coating Polished finish ●Cam lever, lever: Steel (SCM440) Hardened and tempered Electroless nickel plating
