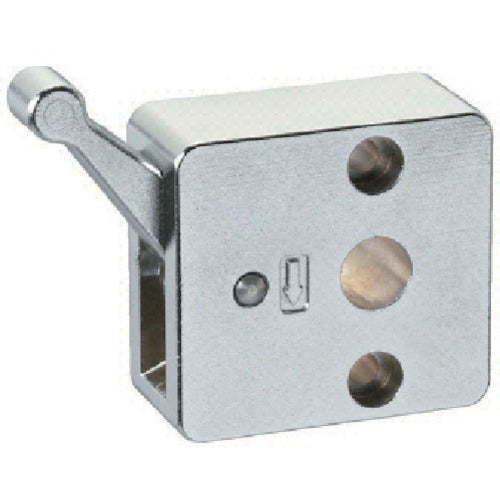

IMAO Quick Shaft Clamp QSC20L 1 pc

Catalog number: QSC20L Features: ●After positioning the feed screw shaft or slide shaft, it can be locked easily and securely. ●Compared to the conventional fixing method of clamp lever or knob, it is particularly effective when there are many adjustment locations, as it improves workability. In addition, it does not require space for the clamp lever to rotate, so it can be designed to save space. Specifications: ●d(mm): 20 ●L(mm): 55 ●H(mm): 50 ●Quick shaft clamp Material/Finish: ●Body: Zinc die-cast, chrome-plated ●Lever: Zinc die-cast, chrome-plated ●Push bar: Brass (CAC402) ●Leaf spring: SUS304 Caution: ●Hit the lever with a hammer or clamp it with a pipe, etc., as this may cause it to break. ●Shipping to Hokkaido and Okinawa: 1,500 yen
