(株)イマオコーポレーション

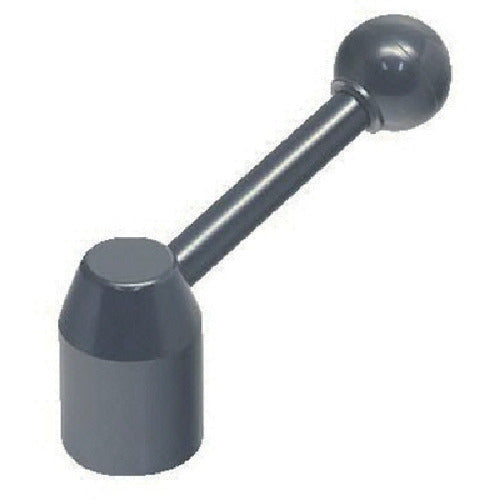

IMAO Clamp Lever Locking Lever Thread Size M10 x 1.50 LL50R 1 pc
IMAO Clamp Lever Locking Lever Thread Size M10 x 1.50 LL50R 1 pc
Regular price
¥1,320
Regular price
Sale price
¥1,320
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: LL50R Features: ●The grip uses a plastic grip ball. ●The main body has precision holes. Applications: ●For lever operation points on various devices. Specifications: ●Thread dimensions: M10 x 1.5 ●Thread depth (mm): 19 ●Turning radius (mm): 50 ●Color: Black ●Grip diameter (mm): 20 ●Precision hole: 10H8 ●Hole depth (mm): 19 ●Locking lever ●Color: Black Materials/Finish: ●Boss: S45C (melamine coating) ●Shaft: SS400 (melamine coating) ●Grip: ABS resin Notes: ●Shipping to Hokkaido and Okinawa is 1,500 yen
