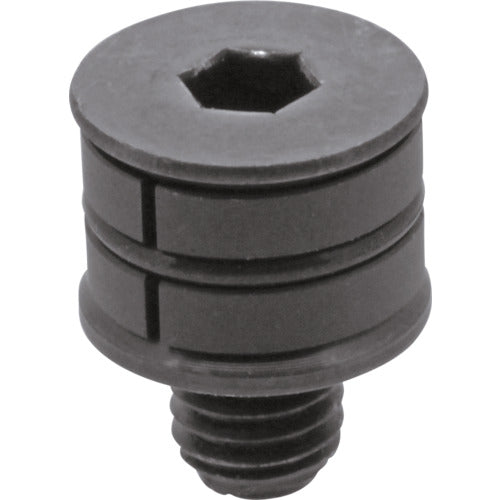

IMAO Compact Inner Diameter Clamp CP131-06001A 1 pc
IMAO Compact Inner Diameter Clamp CP131-06001A 1 pc
Regular price
¥3,379
Regular price
Sale price
¥3,379
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: CP131-06001A Features: ● Workpieces can be clamped from the inside. ● Wedge structure provides strong clamping of workpieces. ● Large stroke allows use in cast holes and rough holes. Specifications: ● Screw dimensions: M6 x 1 ● Screw length (mm): 18 ● Clamping force (kN): 2.1 ● Clamping diameter (mm): 12-16.3 ● Height (mm): 7 Material/Finish: ● Ferrule: SNCM439 ● Washer: SCM435 ● O-ring: Fluorine rubber
