IMAO Thumb Turn Clamper QCTHL0834-20S 1 pc

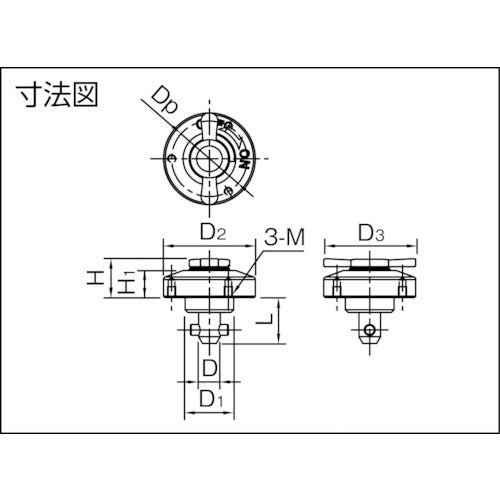

Catalog number: QCTHL0834-20S Features: ●ON and OFF are clearly indicated. ●Low head knob specifications. ●Used in combination with the separately sold cam case. Applications: ●Camera unit replacement. Specifications: ●Clamping force (N): 90 ●Compatible plate thickness (mm): 12-20 ●Dimensions (mm) D: 8 ●Dimensions (mm) D1: 18 ●Dimensions (mm) D2: 34 ●Dimensions (mm) D3: 34 ●Dimensions (mm) Dp: 28 ●Dimensions (mm) H: 15.5 ●Dimensions (mm) H1: 10.0 ●Dimensions (mm) L: 23.0 ●Dimensions (mm) M: M3 x 0.5 depth 4 ●IMAO Thumb Turn Clamp Material/Finish: ●Body: Stainless steel (SUS303) ●Knob: SCS13 (equivalent to SUS304)
