(株)イマオコーポレーション

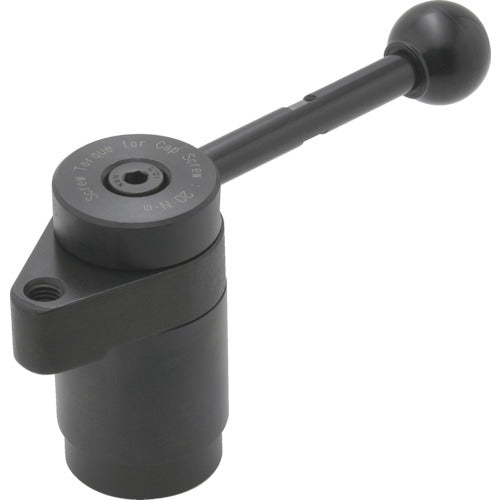

IMAO Swing Clamp (with lever, right rotation) 200 QLSW200R 1 piece
IMAO Swing Clamp (with lever, right rotation) 200 QLSW200R 1 piece
Regular price
¥39,072
Regular price
Sale price
¥39,072
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: QLSW200R Features: ●The hook swings when the lever is operated, so it does not interfere with the attachment and removal of the workpiece. Applications: ●Light cutting clamp, mainly for aluminum die-casting. Specifications: ●Height (mm): 78.1 ●Clamping force (N): 1200 ●Stroke (mm): 1.8 ●Mounting screw (mm): M6 x 1.0 depth 12.0 ●Lever rotation radius (mm): 107 ●Rotation direction: Right Material/Finish: ●Body, shaft: Steel (SCM440) ●Hook, tightening washer, lever: Steel (S45C) ●Grip: ABS resin
