(株)イマオコーポレーション

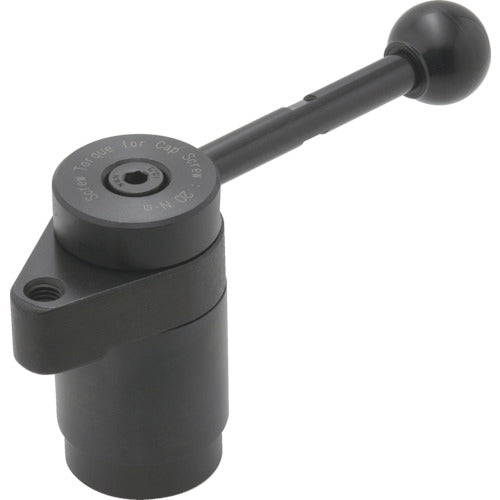

IMAO Swing Clamp (with lever, left rotation) 150 QLSW150L 1 piece
IMAO Swing Clamp (with lever, left rotation) 150 QLSW150L 1 piece
Regular price
¥30,096
Regular price
Sale price
¥30,096
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: QLSW150L Features: ●The hook swings when the lever is operated, so it does not interfere with the attachment and removal of the workpiece. Applications: ●Light cutting clamp, mainly for aluminum die-casting. Specifications: ●Height (mm): 57.5 ●Clamping force (N): 800 ●Stroke (mm): 1.2 ●Mounting screw (mm): M4 x 0.7 depth 8.0 ●Lever rotation radius (mm): 73 ●Rotation direction: Left Material/Finish: ●Body, shaft: Steel (SCM440) ●Hook, tightening washer, lever: Steel (S45C) ●Grip: ABS resin
