IMAO Chain Bolt Single End Type Chain No. 35 CBS1-35 1 pc

IMAO Chain Bolt Single End Type Chain No. 35 CBS1-35 1 pc

JAN：4995889015701 　
Bearings, drive equipment, transmission parts chain Chain bolt Imao Handle Mechatronics Parts
¥581
¥581
Sale Sold out
Shipping calculated at checkout.

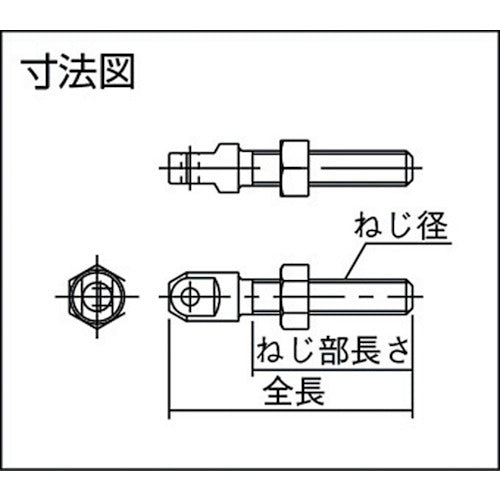

Catalogue number: CBS1-35 Features: ● Chain ends can be easily fixed. (Single-end type) ● Chains can be easily linked. (Double-end type) ● Chain tensioning becomes easier. Applications: ● Chain connection. ● Adjustment of chain stretch. Specifications: ● Chain No.: 35 ● Total length (mm): 45 ● Thread length (mm): 27 ● Thread diameter: M6 x 1.00 ● Allowable load (N): 2000 ● Single-end type ● Right-hand thread type Material/Finish: ● Steel
