IMAO Pin Hold Clamper QCPC0625-10S 1 pc

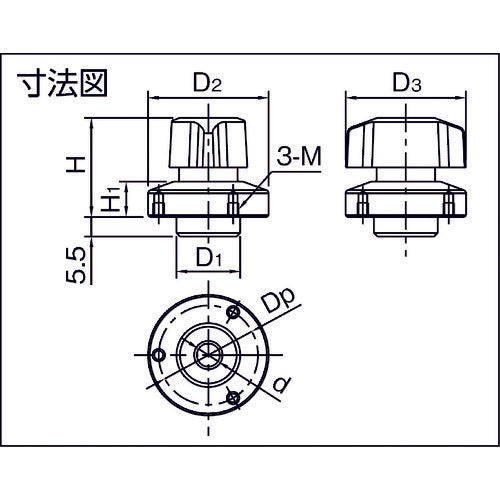

Catalog number: QCPC0625-10S Features: ●Space-saving pin type with clear ON/OFF. ●Use in combination with separately sold clamp pins. Applications: ●Replacing guides around star wheels. Specifications: ●Clamping force (N): 7 ●Compatible plate thickness (mm): 6-10 ●Dimensions (mm) D: 6 ●Dimensions (mm) D1: 14 ●Dimensions (mm) D2: 25 ●Dimensions (mm) D3: 25 ●Dimensions (mm) Dp: 21 ●Dimensions (mm) H: 23 ●Dimensions (mm) H1: 6.5 ●Dimensions (mm) M: M2 x 0.4 depth 3 ●d: 6 ●IMAO Pin Hold Clamp Material/Finish: ●Body: Stainless steel (SUS303) ●Shaft: Carbon steel (S45C) electroless nickel plating ●Knob: SCS13 (equivalent to SUS304)
