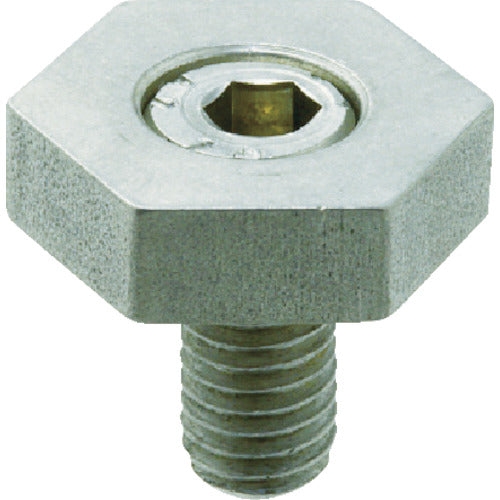

IMAO Fixture Clamp M8 Stainless Steel MBFC08-SUS 1 pc

Catalog number: MBFC08-SUS Features: ●The eccentric cam screw allows for quick and strong clamping. ●Excellent rust prevention. Applications: ●For multiple clamping of small workpieces. Specifications: ●Width (mm): 20.6 ●Height (mm): 6.4 ●Clamping force (N): 3500 ●Screw dimensions: M8 x 1.25 ●Screw length (mm): 15 ●Allowable tightening torque (N・m): 11 Material/Finish: ●Cam screw: Stainless steel (SUS304) ●Washer: Stainless steel (SUS303) Caution: ●Use the clamp with clockwise rotation. ●Install the workpiece stopper on the right side. ●When clamping, the head of the cam screw may protrude about 3 mm from the washer, so please be careful of interference with tools.
