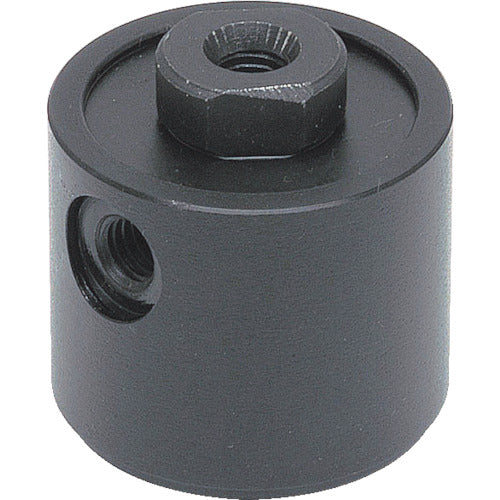

IMAO Push Clamp (for Machine Tools) with Lever Clamping Force 4000N QLPU200R 1 pc

IMAO Push Clamp (for Machine Tools) with Lever Clamping Force 4000N QLPU200R 1 pc

JAN：4995889733742 　
Clamps (for machine tools) Imao Block Machine tools Tooling and fixtures
¥24,288
¥24,288
Sale Sold out
Shipping calculated at checkout.

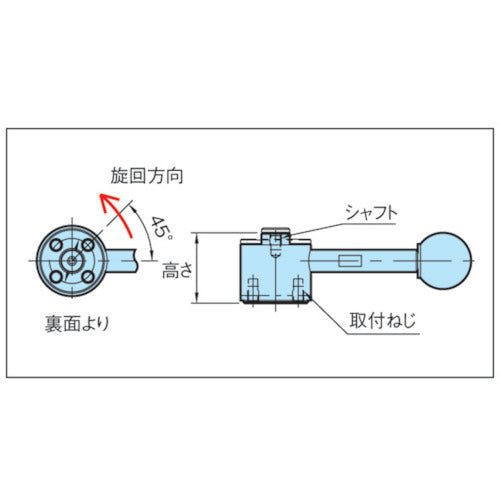

Catalogue number: QLPU200R Features: ●The boss is pushed out by operating the lever to clamp. ●Achieve simple and functional jig construction. Applications: ●Light cutting clamping, mainly for aluminum die-casting. Specifications: ●Width (mm): 2.5 ●Height (mm): 32 ●Clamping force (N): 4000 ●Stroke (mm): 2.5 ●Clamping height (mm): 32 ●Mounting screw (mm): M6 x 1.0 ●Lever rotation radius (mm): 103.0 ●Rotation direction: Right Material/Finish: ●Cam: Steel (SCM440) ●Shaft, lever: Steel (S45C) ●Grip ball: ABS resin
