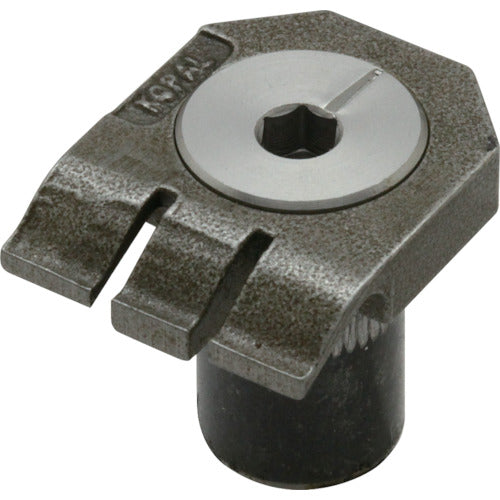

IMAO Hold Down Clamp (for machine tools) Width 20 x Depth 25 x Height 5 mm KPHC25210 1 piece

Catalog number: KPHC25210 Features: ●Eccentric cam allows for quick and strong clamping with a 1/4 turn. ●The three-part tip has a special shape, and the workpiece is pressed down on both sides and clamped strongly in the center, preventing the workpiece from floating up. Applications: ●Ideal for thin workpieces. Specifications: ●Width (mm): 20 ●Height (mm): 5 ●Clamping force (N): 4000 ●Diameter (mm): 12 ●Stroke (mm): 0.86 ●Depth (mm): 25 ●Clamping stroke (mm): 0.86 ●Allowable tightening torque (N・m): 9 Material/Finish: ●Body, retaining ring: Spring steel ●Eccentric cam: Steel (SNCM625) ●Pillar: Steel (SUM43) Caution: ●Use the hold-down clamp with clockwise rotation.
