IMAO Button Lock Clamper QCBU1012-16 1 pc

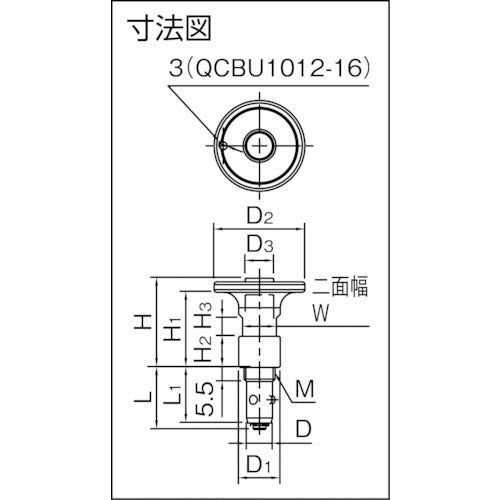

Catalogue number: QCBU1012-16 Features: ● Button-operated wedge clamp prevents fluttering. ● Use in combination with a separately sold case. Applications: ● Attaching and detaching hoppers. Specifications: ● Clamping force (N): 50 ● Compatible plate thickness (mm): 6-16 ● Dimensions (mm) D: 10 ● Dimensions (mm) D1: 16 ● Dimensions (mm) D2: 35 ● Dimensions (mm) D3: 11 ● Dimensions (mm) H: 34.5 ● Dimensions (mm) H1: 29 ● Dimensions (mm) H2: 12 ● Dimensions (mm) H3: 7 ● Dimensions (mm) L: 23.5 ● Dimensions (mm) L1: 21.5 ● Dimensions (mm) M: M12 x 1.5 ● Dimensions (mm) W: 13 ● Dimensions (mm) d: 3 ● IMAO Button Lock Clamp Material/Finish: ● Body: Carbon steel (S45C) electroless nickel plating
