IMAO Button Lock Clamper QCBUS0608-10SUS 1 pc

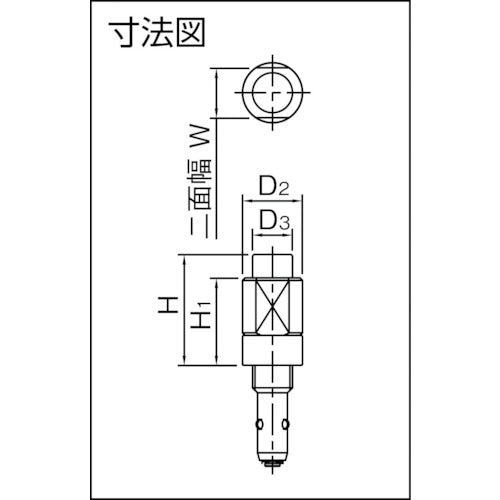

Catalog number: QCBUS0608-10SUS Features: ● Wedge mechanism prevents fluttering. ● Use in combination with a separately sold case. Applications: ● Attaching and detaching hoppers. Specifications: ● Clamping force (N): 30 ● Compatible plate thickness (mm): 6-10 ● Dimensions (mm) D: 6 ● Dimensions (mm) D1: 12 ● Dimensions (mm) D2: 12 ● Dimensions (mm) D3: 8 ● Dimensions (mm) H: 22.0 ● Dimensions (mm) H1: 17.5 ● Dimensions (mm) L: 21.0 ● Dimensions (mm) L1: 19 ● Dimensions (mm) M: M8 x 1.25 ● Dimensions (mm) W: 10 ● Straight type Material/Finish: ● Body: Stainless steel (SUS303)
