IMAO Button Lock Clamper QCBUS1012-16SUS 1 pc

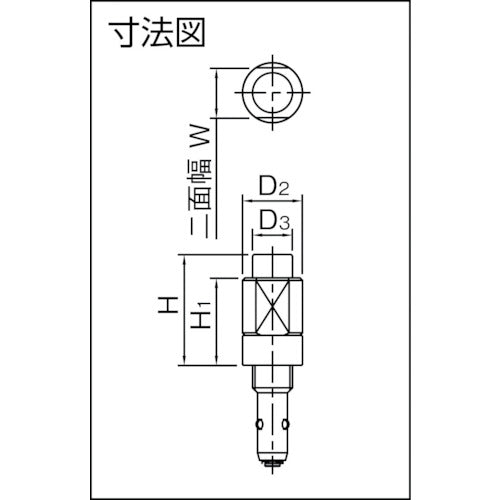

Catalog number: QCBUS1012-16SUS Features: ● Wedge mechanism prevents fluttering. ● Use in combination with a separately sold case. Applications: ● Attaching and detaching hoppers. Specifications: ● Clamping force (N): 50 ● Compatible plate thickness (mm): 6 to 16 ● Dimensions (mm) D: 10 ● Dimensions (mm) D1: 16 ● Dimensions (mm) D2: 16 ● Dimensions (mm) D3: 11 ● Dimensions (mm) H: 34.5 ● Dimensions (mm) H1: 28 ● Dimensions (mm) L: 23.5 ● Dimensions (mm) L1: 21.5 ● Dimensions (mm) M: M12 x 1.5 ● Dimensions (mm) W: 13 ● Straight type Material/Finish: ● Body: Stainless steel (SUS303)
