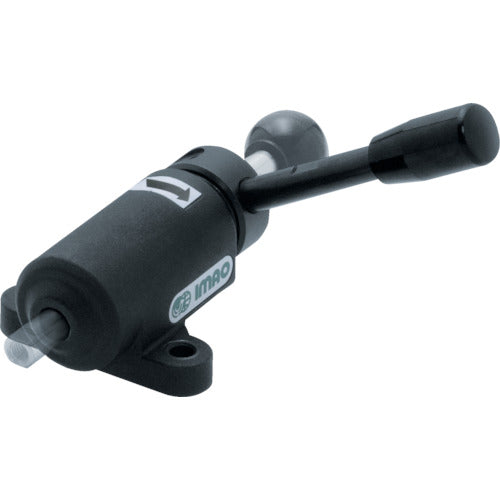

IMAO Reach Clamp QLRC-12R 1 pc

Catalog number: QLRC-12R Features: ●The protruding shaft allows clamping even on deep workpieces. ●Clamping is always consistent due to the built-in spring. ●Clamping is done by lever clamping and unclamping with a horizontal push type ●Large approach stroke ●Clamping is completed by rotating the lever 120 degrees ●Two lever rotation directions: right and left ●Clamping is always done by turning the lever all the way, so there is no variation in clamping depending on the operator. ●The approach stroke can be changed by changing to a shaft of a different length. (Sold separately) ●The large stroke improves workability when attaching and detaching the workpiece. Applications: ●For use as a jig for assembly and cutting. ●For light cutting such as drilling that does not put much strain on the workpiece. Specifications: ●Width (mm): 96 ●Height (mm): MAX 157 ●Clamping force (N): 1400 ●Stroke (mm): 2.3 ●Mounting screw (mm): M8 ●Lever load (N): 150 Material/Finish: ●Body, lever: Steel (S45C) ●Cam: Steel (SCM415) ●Grip: Phenolic resin Note: ●If the reaction force applied to the clamping surface becomes greater than the clamping force, the shaft will slide and the clamp will be released.
