(株)イマオコーポレーション

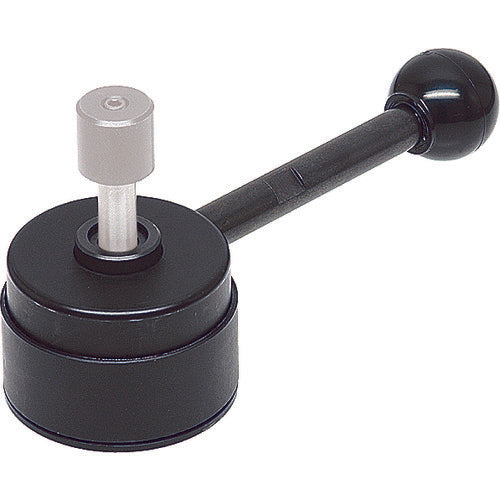

IMAO Retractable Clamp (with Lever) 150 QLPD150R 1 pc
IMAO Retractable Clamp (with Lever) 150 QLPD150R 1 pc
Regular price
¥29,357
Regular price
Sale price
¥29,357
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

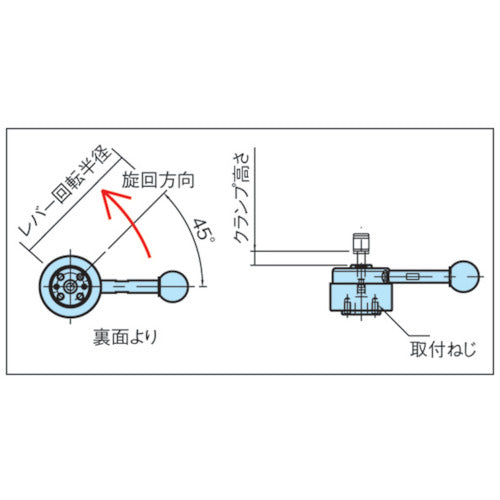

Catalogue number: QLPD150R Features: ● Pulls in and clamps by operating the lever. ● The jig is hidden under the workpiece, so it does not interfere with the work area. Applications: ● Light cutting clamping, mainly for aluminum die-casting. Specifications: ● Height (mm): 32 ● Clamping force (N): 900 ● Stroke (mm): 1.5 ● Mounting screw (mm): M4 x 0.7 ● Lever rotation radius (mm): 76.5 ● Rotation direction: Right Material/Finish: ● Body: Steel (SCM440) ● Lever: Steel (S45C) ● Grip: ABS resin
