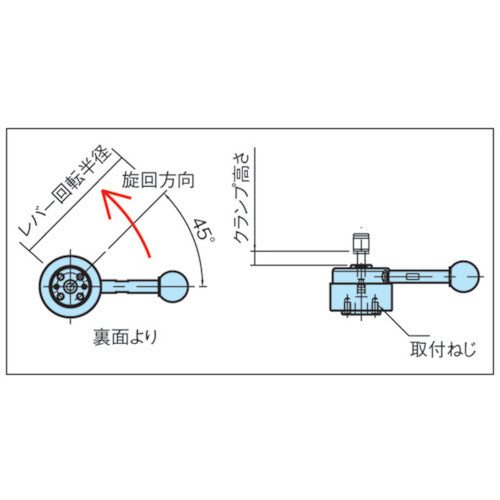

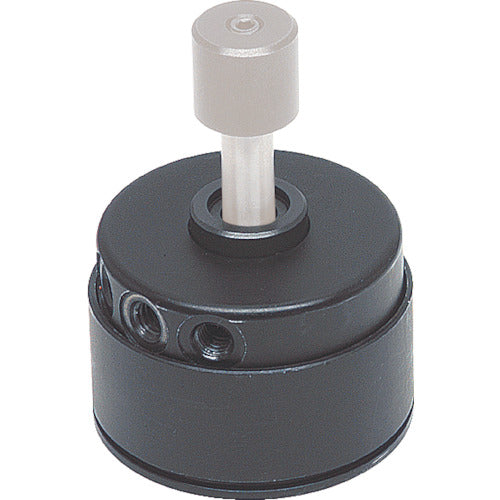

Catalogue number: QLPD200R Features: ● Pulls in and clamps by operating the lever. ● The jig is hidden under the workpiece, so it does not interfere with the work area. Applications: ● Light cutting clamping, mainly for aluminum die-casting. Specifications: ● Height (mm): 40 ● Clamping force (N): 2500 ● Stroke (mm): 2.0 ● Mounting screw (mm): M6 x 1.0 ● Lever rotation radius (mm): 111.5 ● Rotation direction: Right Material/Finish: ● Body: Steel (SCM440) ● Lever: Steel (S45C) ● Grip: ABS resin
