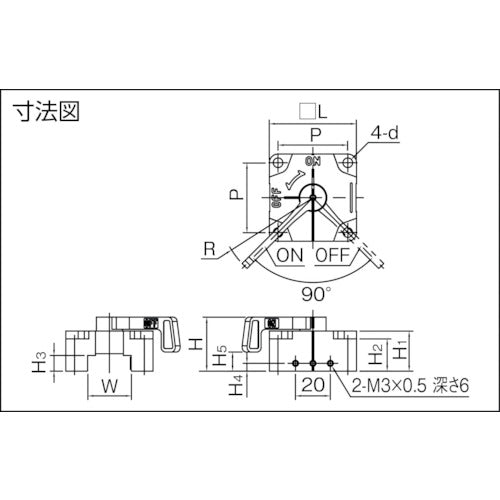

Catalog number: QCSQ1212-L Features: ●When a sliding load is applied to the steel material, the shaft is pushed into the space of the wedge angle, locking the movement of the steel material. ●Can be operated from the side even in narrow spaces. Applications: ●Adjustment of adjacent cameras and printers. Specifications: ●Dimensions (mm) H: 29 ●Dimensions (mm) H1: 22 ●Dimensions (mm) H2: 18.5 ●Dimensions (mm) H3: 12 ●Dimensions (mm) H4: 6 ●Dimensions (mm) H5: 11 ●Dimensions (mm) L: 40 ●Dimensions (mm) P: 32 ●Dimensions (mm) R: 46 ●Dimensions (mm) W: 12 ●Dimensions (mm) d: 4.5 ●Metal lever Material/Finish: ●Body: Zinc die-cast chrome-plated ●Lever: Stainless steel SCS13 (equivalent to SUS304)
