IMAO Square Steel Slide Lock QCSQ1212-OG 1 pc

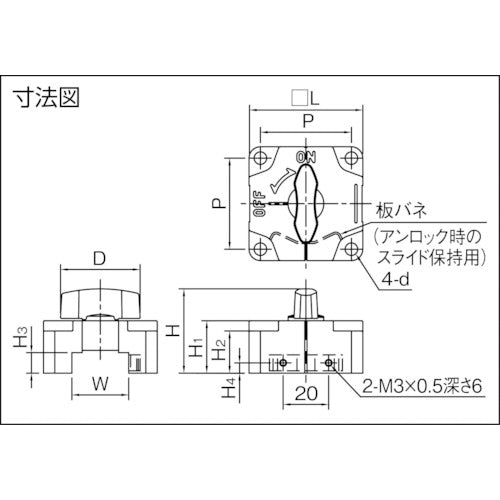

Catalogue number: QCSQ1212-OG Features: ●When a sliding load is applied to the steel material, the shaft is pushed into the space of the wedge angle, locking the movement of the steel material. Applications: ●Adjustment of printing ink pad. Specifications: ●Dimensions (mm) D: 28 ●Dimensions (mm) H: 36 ●Dimensions (mm) H1: 22 ●Dimensions (mm) H2: 18.5 ●Dimensions (mm) H3: 12 ●Dimensions (mm) H4: 6 ●Dimensions (mm) L: 40 ●Dimensions (mm) P: 32 ●Dimensions (mm) W: 12 ●Dimensions (mm) d: 4.5 ●Orange plastic knob Material/Finish: ●Body: Zinc die-cast chrome-plated ●Knob: Polyamide
