IMAO Square Steel Slide Lock QCSQ3216-OG 1 pc

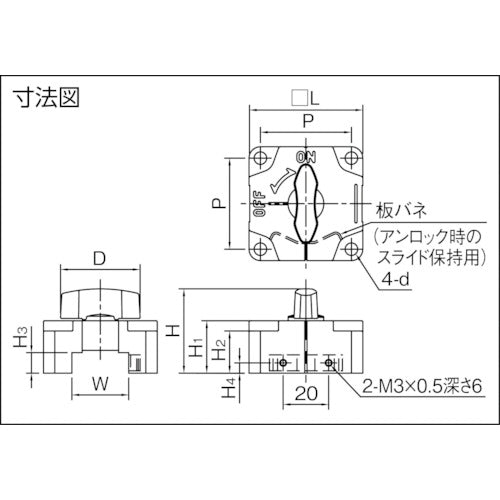

Catalogue number: QCSQ3216-OG Features: ●When a sliding load is applied to the steel material, the shaft is pushed into the space of the wedge angle, locking the movement of the steel material. Applications: ●Adjusting the printing ink pad. Specifications: ●Dimensions (mm) D: 35 ●Dimensions (mm) H: 44 ●Dimensions (mm) H1: 30 ●Dimensions (mm) H2: 25.5 ●Dimensions (mm) H3: 16 ●Dimensions (mm) H4: 8 ●Dimensions (mm) L: 50 ●Dimensions (mm) P: 40 ●Dimensions (mm) W: 32 ●Dimensions (mm) d: 5.5 ●Orange plastic knob Material/Finish: ●Body: Zinc die-cast chrome-plated ●Knob: Polyamide
