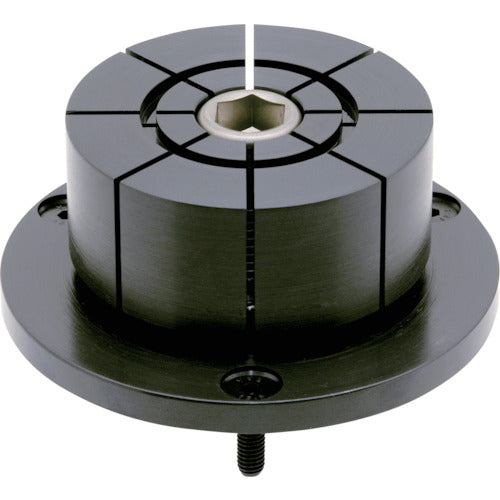

IMAO ID clamp MBID16C 1 piece

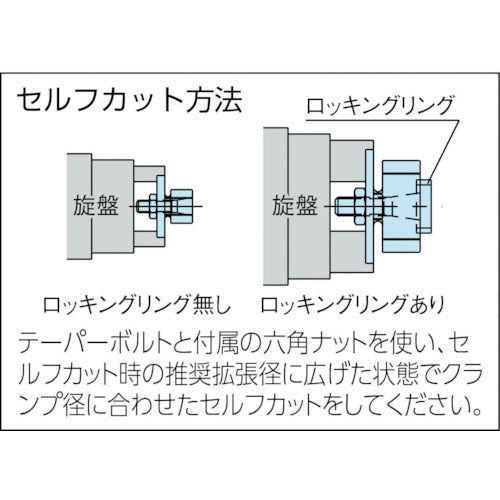

Catalog number: MBID16C Features: ● Workpieces can be clamped from the inside. By self-cutting the clamping part, it can accommodate a wide range of workpiece diameters. Applications: ● For workpieces with multiple pieces. Specifications: ● Height (mm): 45.5 ● Clamping force (N): 44000 ● Thread dimensions: M16 x 2.00 ● Clamping diameter (mm): 77.7 ● Suitable workpiece diameter (mm): 29.3 to 77.7 ● Overall diameter (mm): 107.5 ● Allowable expansion diameter (mm): 0.6 ● Recommended expansion diameter when self-cutting (mm): 0.15 to 0.4 Material/Finish: ● Body: Steel (SUM24L) ● Tapered bolt: Steel (SCM440) Set contents/Accessories: ● 1 hexagonal nut ● 1 locking ring (MBID16C/MBID16D only)
