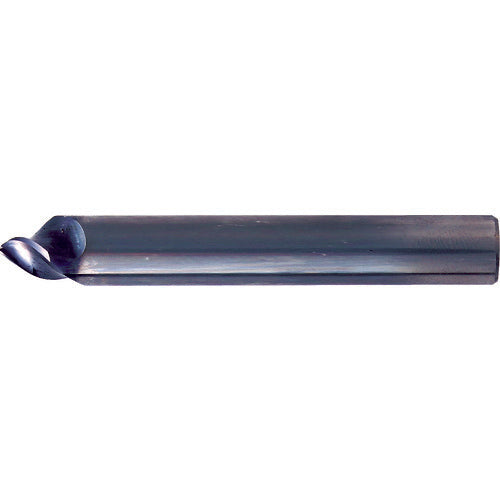

Iwata Tool Positioning Chamfering Tool Chamfering Angle 60° Chamfering Diameter 0.2-1 60TGHSP1CBALD 1 Piece

Catalog number: 60TGHSP1CBALD Features: ● Suitable for positioning, chamfering, simultaneous centering, hole chamfering, and milling chamfering on hardened steel. ● The 3-blade and unique shape have increased the tool's life and machining speed for hardened steel. Applications: ● Workpiece: Hardened steel HRC40-72 ● Positioning. ● V-groove milling. ● Chamfering milling. ● Hole chamfering. Specifications: ● Shank diameter (mm): 3 ● Overall length (mm): 40 ● Center hole angle (°): 60 ● Maximum chamfering diameter (mm): 1 ● Minimum chamfering diameter (mm): 0.2 ● Surface treatment: ALD coating ● Blade shape: Single-edged ● Surface treatment: ALD coating Material/Finish: ● Carbide
