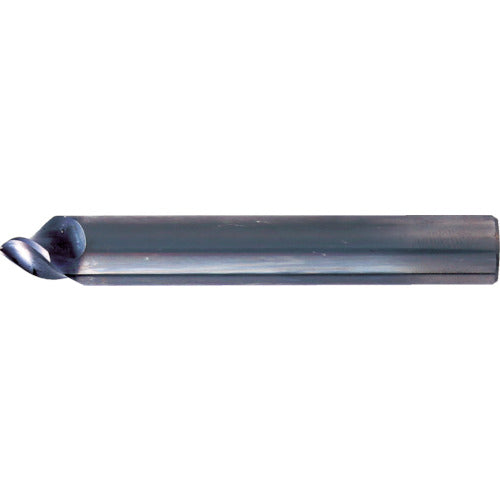

Iwata Tool Positioning Chamfering Tool Chamfering Angle 60° Chamfering Diameter 1.6-8 60TGHSP8CBALD 1 Piece

Catalogue number: 60TGHSP8CBALD Features: ● Suitable for positioning, chamfering, simultaneous centering, hole chamfering, and milling chamfering on hardened steel. ● The 3-blade and unique shape have increased the cutting speed and life of hardened steel. Applications: ● Workpiece: Hardened steel HRC40-72 ● Positioning. ● V-groove milling. ● Chamfering milling. ● Hole chamfering. Specifications: ● Shank diameter (mm): 8 ● Overall length (mm): 60 ● Center hole angle (°): 60 ● Maximum chamfering diameter (mm): 8 ● Minimum chamfering diameter (mm): 1.6 ● Blade shape: Single-edged ● ALD coating Material/Finish: ● Carbide
