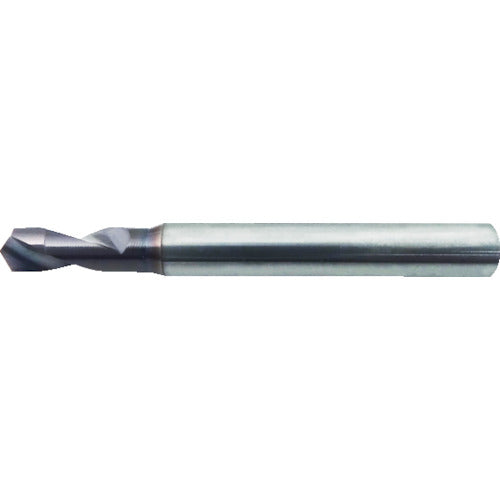

Iwata Tool Ultra-Precision Positioning Drill SPZ1.45CBALT 1 piece

Catalog number: SPZ1.45CBALT Features: ● A positioning drill specialized for pilot holes, achieving drill position accuracy of 1 μm or less. Applications: ● Positioning processing. ● Thin plate drilling. Specifications: ● Shank diameter (mm): 3 ● Overall length (mm): 40 ● Maximum chamfer diameter (mm): 1.4 ● Surface treatment: ALT coating ● Maximum processing depth (mm): 3.9 ● Groove length (mm): 3.9 ● Blade diameter (mm): 1.45 ● Blade shape: Single-edged ● Blade shape: Single-edged Material/Finish: ● Carbide
