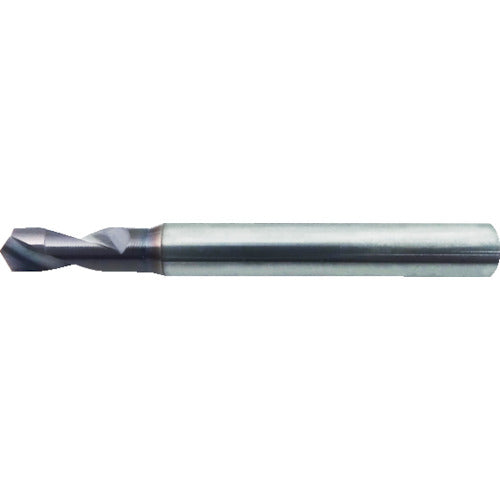

Iwata Tool Ultra-Precision Positioning Drill SPZ2.5CBALT 1 piece

Catalog number: SPZ2.5CBALT Features: ● A positioning drill specialized for pilot holes, achieving drill position accuracy of 1 μm or less. Applications: ● Positioning processing. ● Thin plate hole drilling. Specifications: ● Shank diameter (mm): 3 ● Overall length (mm): 40 ● Maximum chamfer diameter (mm): 2.5 ● Surface treatment: ALT coating ● Blade diameter (mm): 2.5 ● Blade shape: Single-edged ● Groove length (mm): 6.8 ● Maximum processing depth (mm): 6.8 ● Blade shape: Single-edged Material/Finish: ● Carbide
