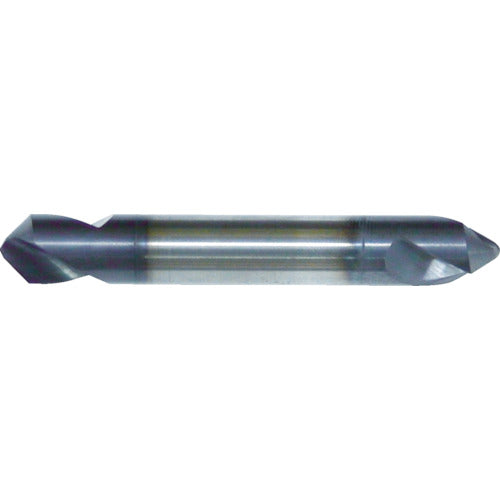

Iwata Tool SP Center 90° with Carbide Coating, Shank Diameter 3mm, 90SPC0.3X0.9CBALD, 1 piece

Catalog number: 90SPC0.3X0.9CBALD Features: ● Suitable for high-precision positioning, chamfering, simultaneous centering, hole chamfering, and milling chamfering. Applications: ● Workpiece: carbon steel, alloy steel, stainless steel, mild steel, tempered steel, tool steel, cast iron, ductile cast iron. Specifications: ● Shank diameter (mm): 3 ● Overall length (mm): 40 ● Center hole angle (°): 90 ● Tip diameter (mm): 0.3 ● Surface treatment: ALD coating ● Pitch (mm): 1.00 ● Thread length (mm): 19 ● Tip: Tip ● Pilot hole diameter (mm): 6.0 ● Precision: OH2 ● Nominal size: M7.0 ● Shank square section (mm): 5.0 ● Blade shape: Double-edged (small diameter 0.5 mm or less, single-edged) ● Blade shape: Double-edged (small diameter 0.5 mm or less, single-edged) ● Surface treatment: ALD coating Material/Finish: ● Carbide
