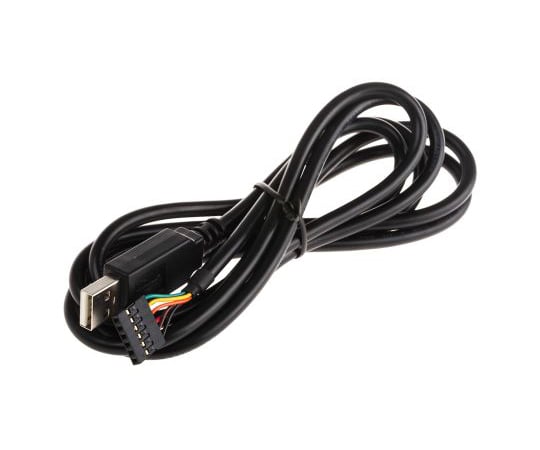

Interface Development Kit 3.3 V TTL USB-UART Cable TTL-232R-3V3 1pc

USB to TTL UART cable, FTDI chip FTDI Chip TTL-232x USB to Serial UART (TTL Level) Converter Cables allow simple and fast conversion of microcontroller UART serial I/O to USB. The TTL-232R contains a small circuit with an FT232x chip on it. It is sealed within a USB-A connector making this cable easy and straightforward to use. This circuit is powered from the USB +5 V power pin. The Vcc connection is always +5 V dc. However, the product is available with +3.3 V or +5 V signal TTL logic levels. These cables are compatible with Microsoft WHQL certified VCP drivers for Windows, Apple mAc and Linux. All of these are available free of charge from the FTDI website. http://www.ftdichip.com - USB 2.0 compatible - Cable length: 1.8 m - Data transfer rates: up to 3 Mbps (FT232R parts), 12 Mbps (FT232H parts) - Individual serial number labelled, used for security purposes when transferring files over the cable - Powered from the USB connector - Various UART termination options available - CE and FCC compliant USB connector with board only (no cable) FTDI Chip TTL-232R-3V3-PCB (RS; 429-284 429-284) +3.3 V UART signaling FTDI Chip TTL-232R-5V-PCB (RS; 429-278 429-278) +5 V UART signaling USB connector with wire-ended 6-core, 24 AWG output FTDI Chip TTL-232RG-VSW3V3-WE (RS; 715-8522 715-8522) +3.3 V UART signaling FTDI Chip TTL-232RG-VSW5V-WE (RS; 730-0155 730-0155) +5 V UART signaling FTDI Chip TTL-232RG-VREG3V3-WE (RS; 715-8529 715-8529) +3.3 V UART signaling FTDI Chip TTL-232RG-VREG1V8-WE (RS; 715-8525 715-8525) +1.8 V UART signaling FTDI Chip TTL-232RG-VIP-WE (RS; 715-8513 715-8513) includes a reference voltage for setting UART signaling levels FTDI Chip TTL-232R-3V3-WE (RS; 429-303 429-303) +3.3 V UART signaling (v1) FTDI Chip TTL-232R-5V-WE (RS; 687-7786 687-7786 ) +5 V UART signaling (v1) USB connector and 6-pole, 0.1 inch single in-line connector FTDI Chip TTL-232R-3V3 (RS; 429-307 429-307 ) +3.3 V UART signaling FTDI Chip TTL-232R-5V (RS; 687-7770 687-7770 ) +5 V UART signaling USB connector and 8-pin, keyed 2mm pitch connector FTDI Chip TTL-232R-3V3-2mm (RS; 687-7780 687-7780 ) +3.3 V UART signaling USB connector and 3.5mm audio jack connector FTDI Chip TTL-232R-5V-AJ (RS; 687-7774 687-7774 ) +5 V UART signaling FTDI Chip TTL-232R-3V3-AJ (RS ; 687-7783 687-7783 ) +3.3 V UART signaling Quantity: 1 piece Interface function: USB-UART Kit classification: Cable Kit name: 3.3V TTL RoHS Compliance Status: Compliant Code number: 429-307
