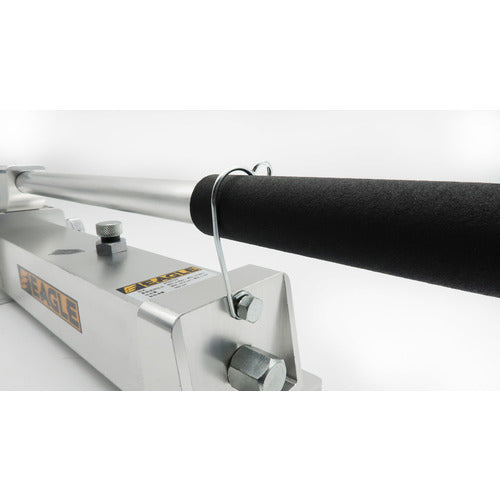

Eagle Aluminum Single Acting Hydraulic Pump, Double Type APS05-70-2V 1 unit

Catalog number: APS05-70-2V Features: ●Aluminum body is used to achieve light weight. ●Two-stage discharge (high/low switching) allows the jack stroke to be larger at low pressure such as no load, shortening the operation time. ●The air vent and oil level gauge are integrated and placed on the top of the pump to reduce the risk of oil leakage. ●It is possible to operate two jacks by connecting two hoses to one pump. Specifications: ●Effective oil volume (L): 0.5 ●Discharge volume per operation (ml) high pressure: 1 ●Discharge volume per operation (ml) low pressure: 12.9 ●Maximum operating pressure (MPa) high pressure: 70 ●Maximum operating pressure (MPa) low pressure: 2 ●Maximum operating pressure (MPa): 70 ●Caliber: Rc3/8 ●Discharge port diameter: Rc3/8 ●2-branch type Material/Finish: ●Body: Aluminum Note: ●Hoses are sold separately. ●When operating two jacks, they will not automatically synchronize. When performing the synchronizing operation, adjust the amount of oil by opening and closing the branch valve to balance the jack.
