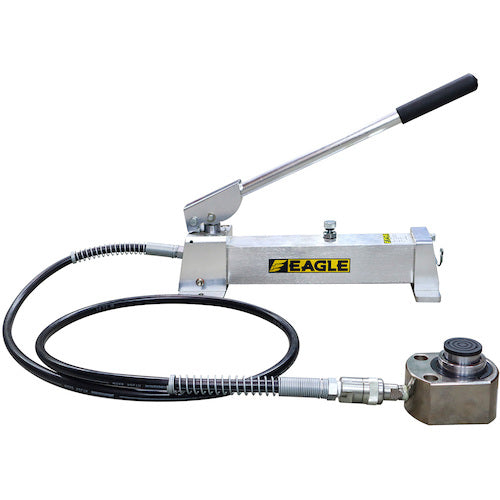

Catalog number: APS05-70-H2-SM Features: ●Hydraulic manual pump with high-pressure hose (2m). ●Riken screw-in coupler (S-1H) is attached to the end of the hose. ●Aluminum body is used to achieve light weight. ●Two-stage discharge (high/low switching), so the amount of jack stroke increases at low pressure such as no load, shortening work time. Applications: ●As a manual pump for ultra-low-floor two-stage extension cylinder jacks (CTS50-25, CTS50-70, CTS100-25, CTS100-70). ●As a manual pump for ultra-low-floor cylinder jacks (CJ2-20, CJ2-30, CJ2-50, CJ3-50). Specifications: ● Compatible cylinder: Single acting ● Effective oil volume (L): 0.5 ● Discharge volume per operation (ml) high pressure: 1 ● Discharge volume per operation (ml) low pressure: 12.9 ● Maximum operating pressure (MPa) high pressure: 70 ● Maximum operating pressure (MPa) low pressure: 2 ● Maximum operating pressure (MPa): 70 ● Diameter: Rc3/8 ● Discharge port diameter: Rc3/8 Material/Finish: ● Body: Aluminum
