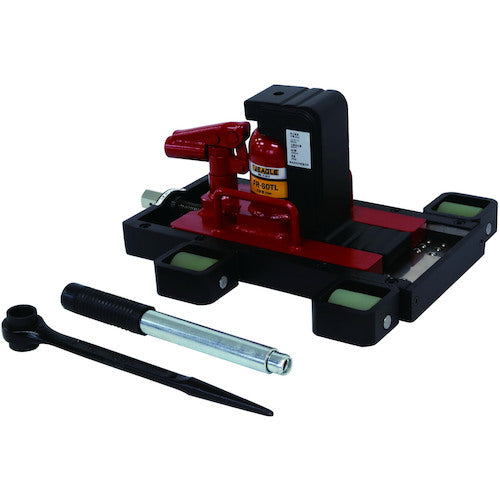

Catalogue number: FR-60TL Features: * A feed table is attached to the claw jack, making it easier to align up and down and front and back and left and right. * It slides smoothly within a range of 100 mm, allowing horizontal movement after lifting. * The handle is rotatable. Push and return are achieved by a screw mechanism using a ratchet handle, allowing fine adjustments. * Comes with four urethane wheels. * The slide table is integrated with the jack by a dovetail guide to prevent it from wobbling left and right. Specifications: ●Lifting force (kN) claw part: 30 (3.0) ●Lifting force (kN) head: Cannot be used ●Stroke (mm): 62 ●Body height (mm): 211-273 ●Claw length (mm): 80 ●Maximum claw height (mm): 112 ●Minimum claw height (mm): 50 ●Width (mm): 65 ●Body dimensions (mm) Height: 211-273 ●Lever rotation ●With safety valve ●Feed table length x width (mm): 422 x 345 ●Urethane wheels: 4 Set contents/accessories: ●Handle ●Ratchet handle
