Eastern Urethane Bearing Type A Hardness 90 U-0520-90 1 pc

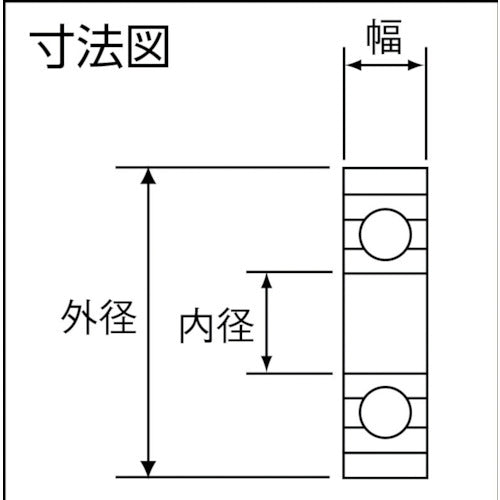

Catalog number: U-0520-90 Features: ● Urethane is bonded to the outer circumference of the bearing, making it quieter. Applications: ● Machine equipment, transportation, etc. Specifications: ● Bearing: 625ZZ ● Inner diameter (mm): 5 ● Outer diameter (mm): 20 ● Width (mm): 5 ● Estimated load (N): 50 ● Angle M (°): 90 ● Bearing precision grade: JIS B 1514 Grade 0 ● Operating temperature range: -20 to 70°C ● Urethane color: Gray Materials/Finish: ● Bearing: Steel ● Outer circumference: Ether-based urethane (hardness 90°) Note: ● This is an estimated load value and is not a guaranteed value.
